- ESP32 ESP-32S Development Board 2.4GHz Dual-Mode WiFi Bluetooth Dual Cores Microcontroller Processor Integrated with ESP32s Antenna RF AMP Filter AP STA for Arduino IDE
- SupportThree Modes: AP, STA, and AP STA
- Support USB power supply, external 3.3V power supply, and VIN power supply three kinds of power supply Mode development board
- Support LWIP protocol, Freertos
- GPIO 1 INTO 2 breakout board can expand one GPIO pin of esp32 development board to two, which is convenient for users to reuse all pins in smart home projects.
Features:High performance-price ratio
Small volume, easily embeded to other products
Strong function with support LWIP protocol, Freertos
Supporting three modes: AP, STA, and AP STA
Supporting Lua program, easily to develop
Development Board:
If it cann't get bluetooth working?Using Node32s as the Board selection. To reference GPIO pins in code use just the number, for example "digitalWrite(13, HIGH)" sets GPIO13 high.
The built-in LED to GPIO2.
Package includes:

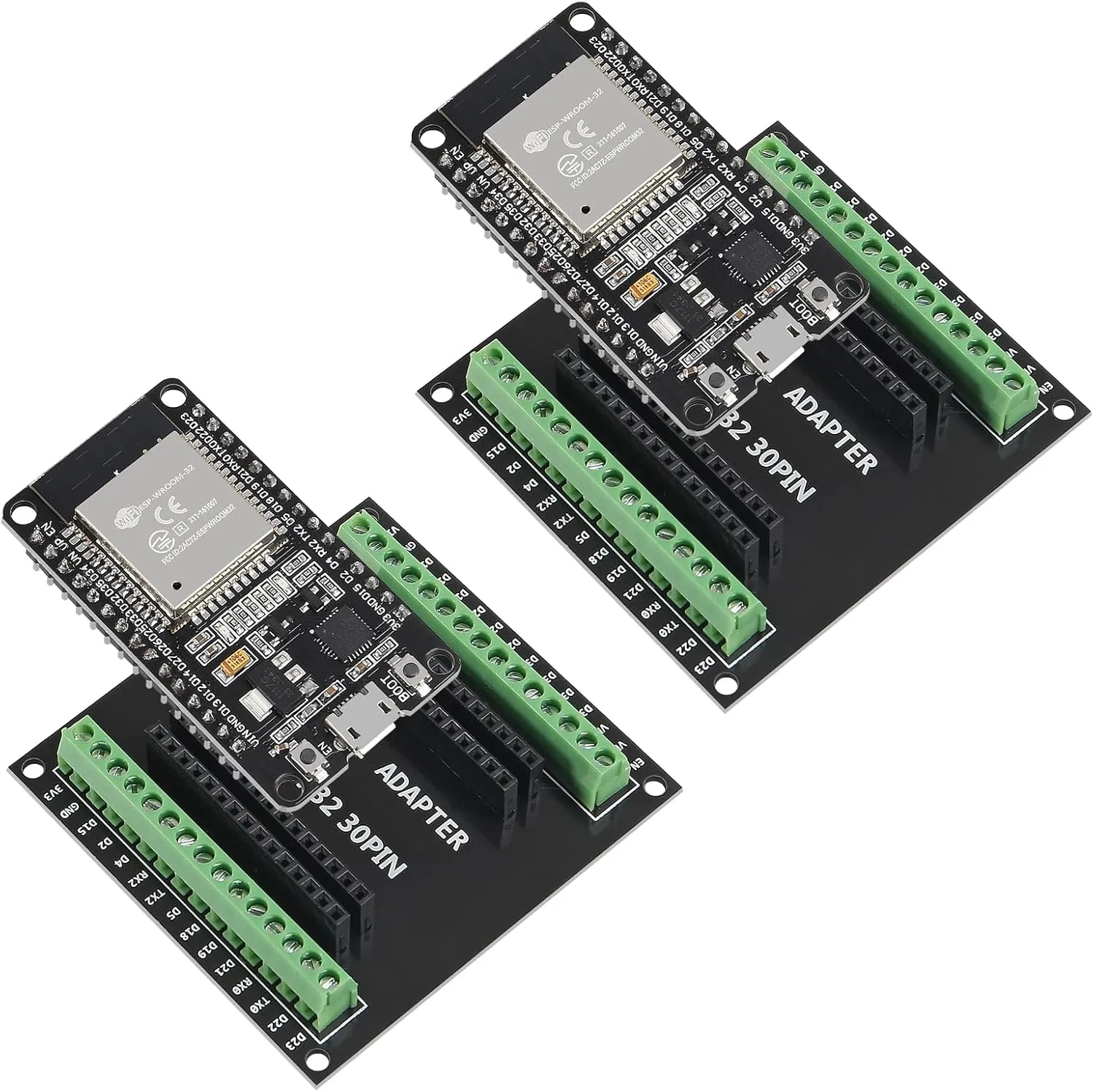

2 x ESP32 Breakout Board Shield GPIO 1 into 2 for 30PIN ESP32 Development Board
2x 30pins ESP32 development boards
