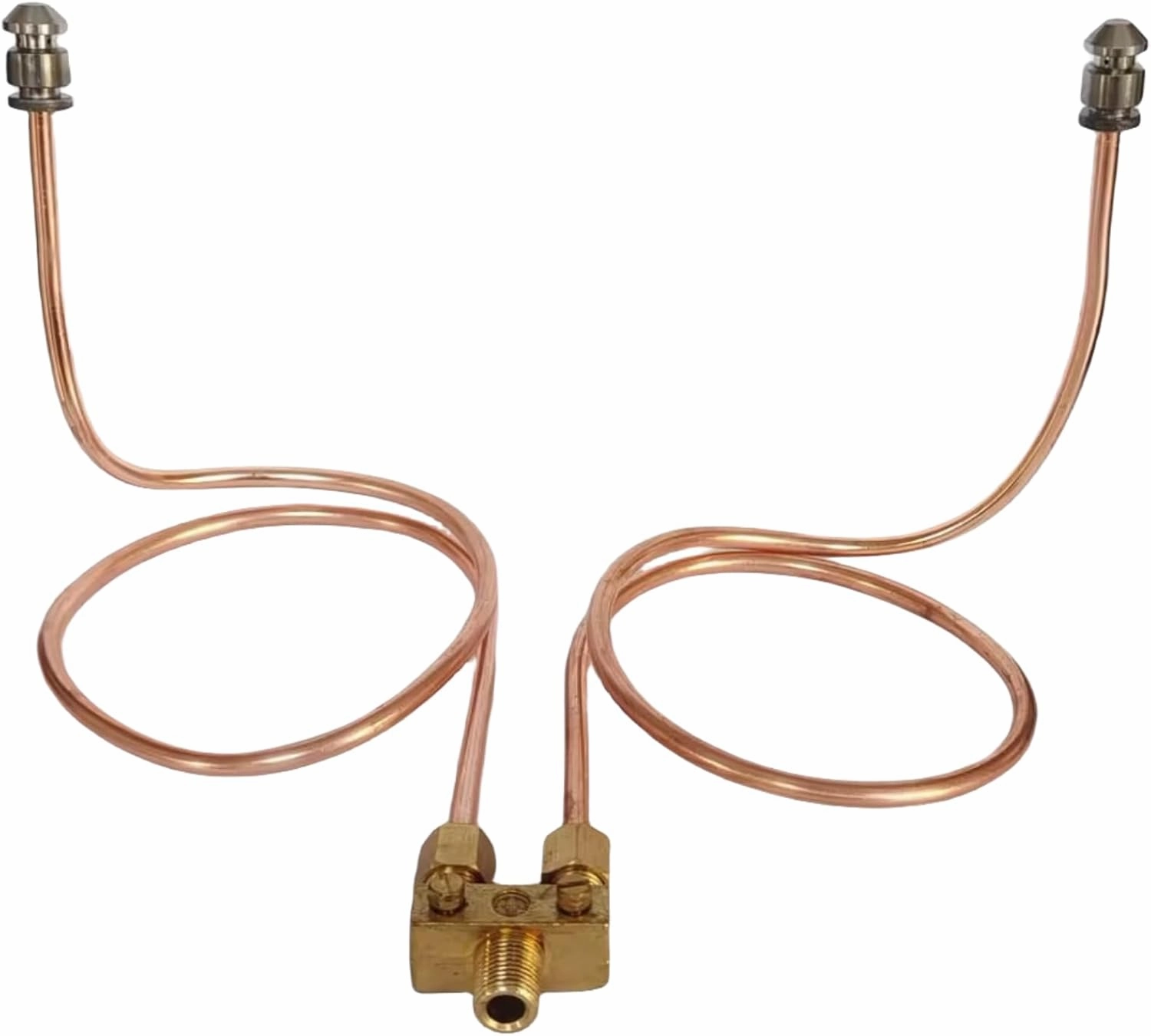

- Product attachments include: one adjustable double PILOT VALVE 1/8 "NPT Inlet x 3/16" OD Tubing Outlet and two 3/16 "OD pilot tube with Tip assembly

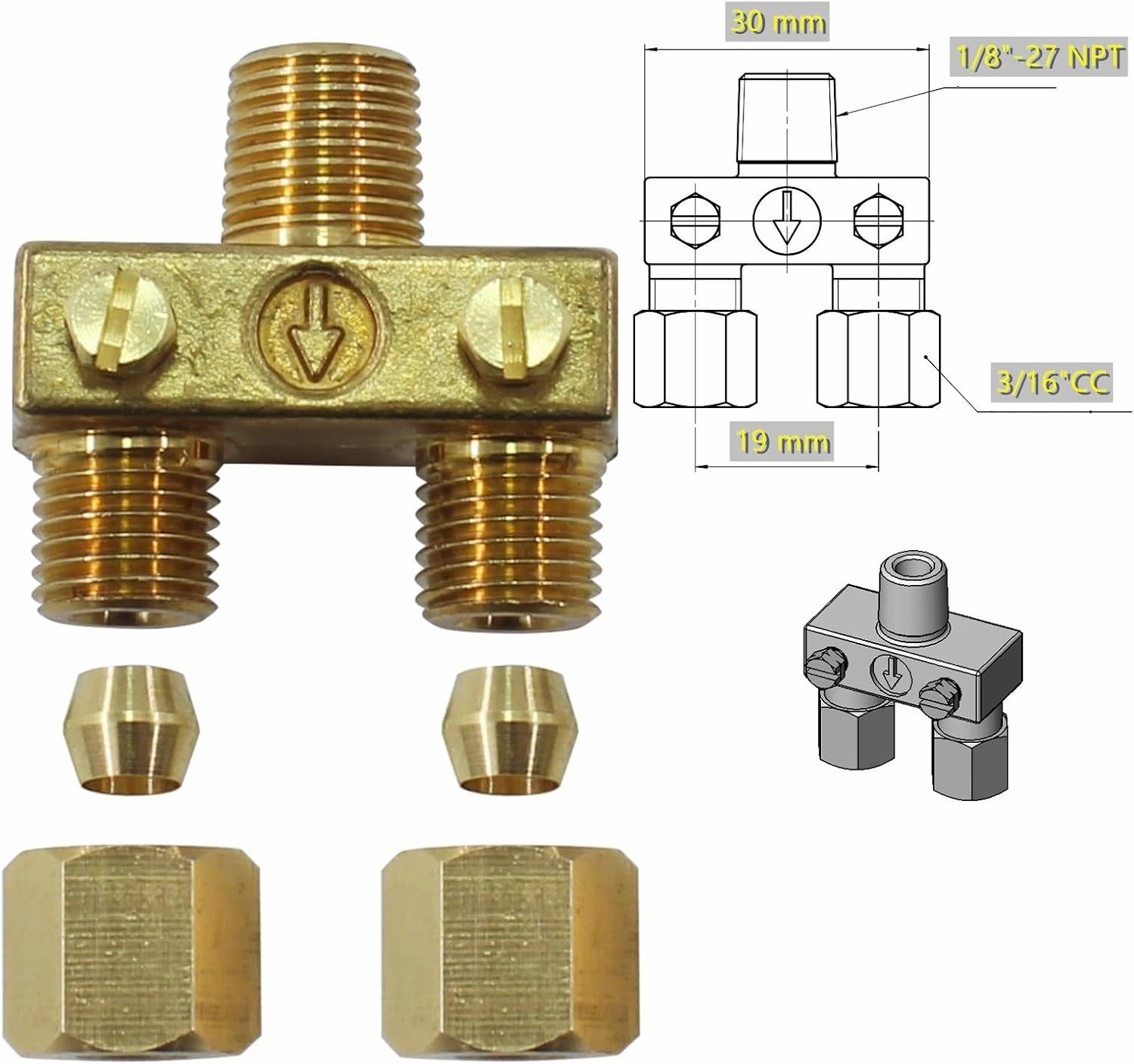

- Replacement for rang A29301 double pilot gas valve adjustable part 1/8"-27 NPT x 3/16"CC
- Max operation pressure 65Mbar or 1/2 Psi, Heavy forged brass construction with a sturdy main body
- Compatible with 2065641 Pilot Valve. 521061- Double Pilot Valve. 52-1095 Dual Pilot Adjustment Valve. Cooking Performance Group 3511068508 Pilot Valve for HP212, HP424 and HP636 Countertop Ranges/Hot Plates
- For Bakers Pride char-broiler model series CH,GG,SGBR, XX,50 series;Rankin-Delux char broiler models TB-825,TB-836;U.S.Range Char-glo series broiler models BBQ,C-HDS-A-24,36,48,RBA,RG-HDS-A series;Vulcan Hart ovens and ranges model series 7800,SG7800;Vulcan Hart ovens and ranges model series 77,SG7; Wolf broilers and cheese melters models FSHB.HBSS,SCB,CMSS Wolf griddles models Hi Boy TG, Husky HG, IRG,MTG, Pro TG.For Wolf ovens and ranges Challenger model seriesCH, CHSS, KCH, KCHSS

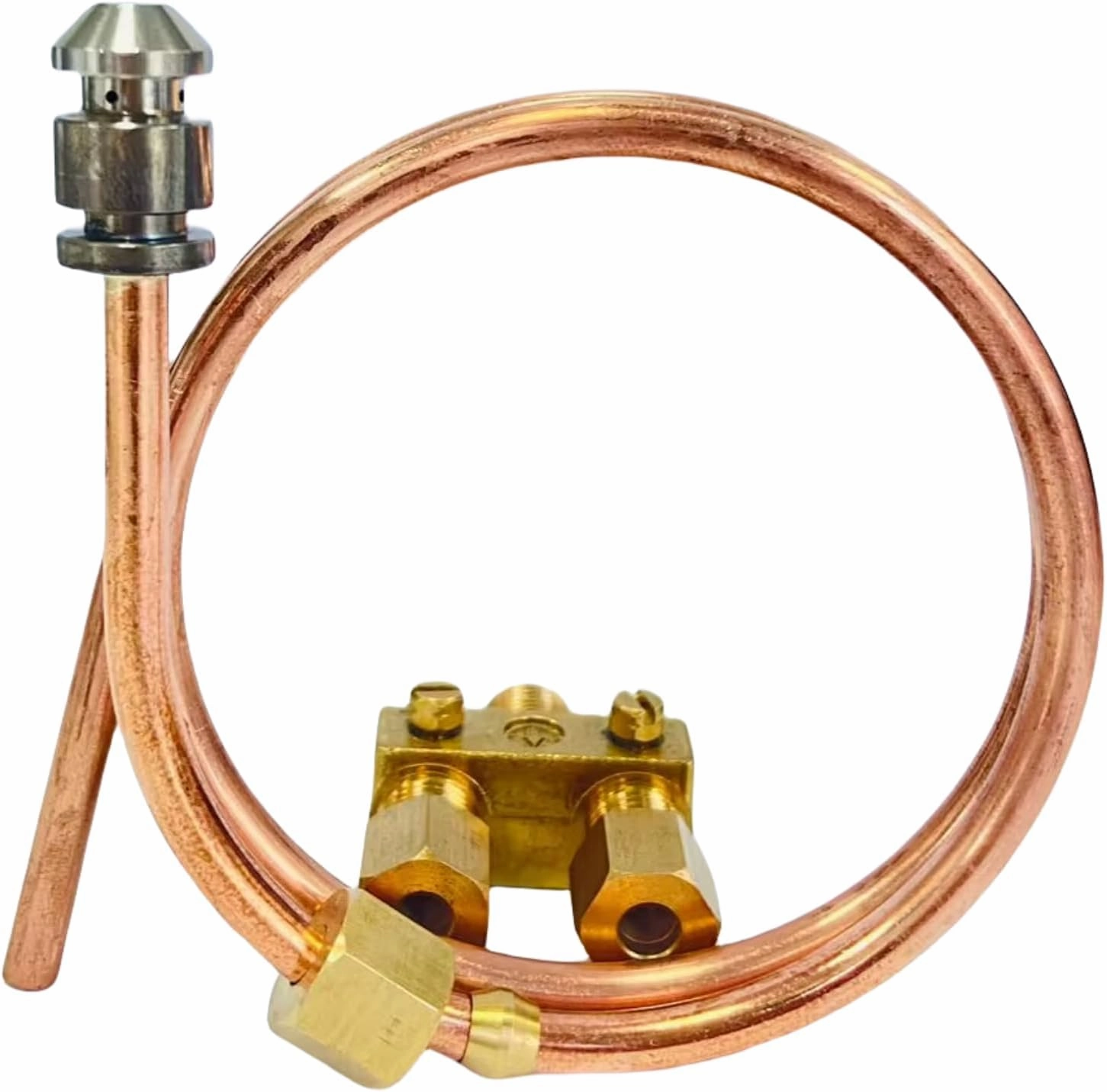

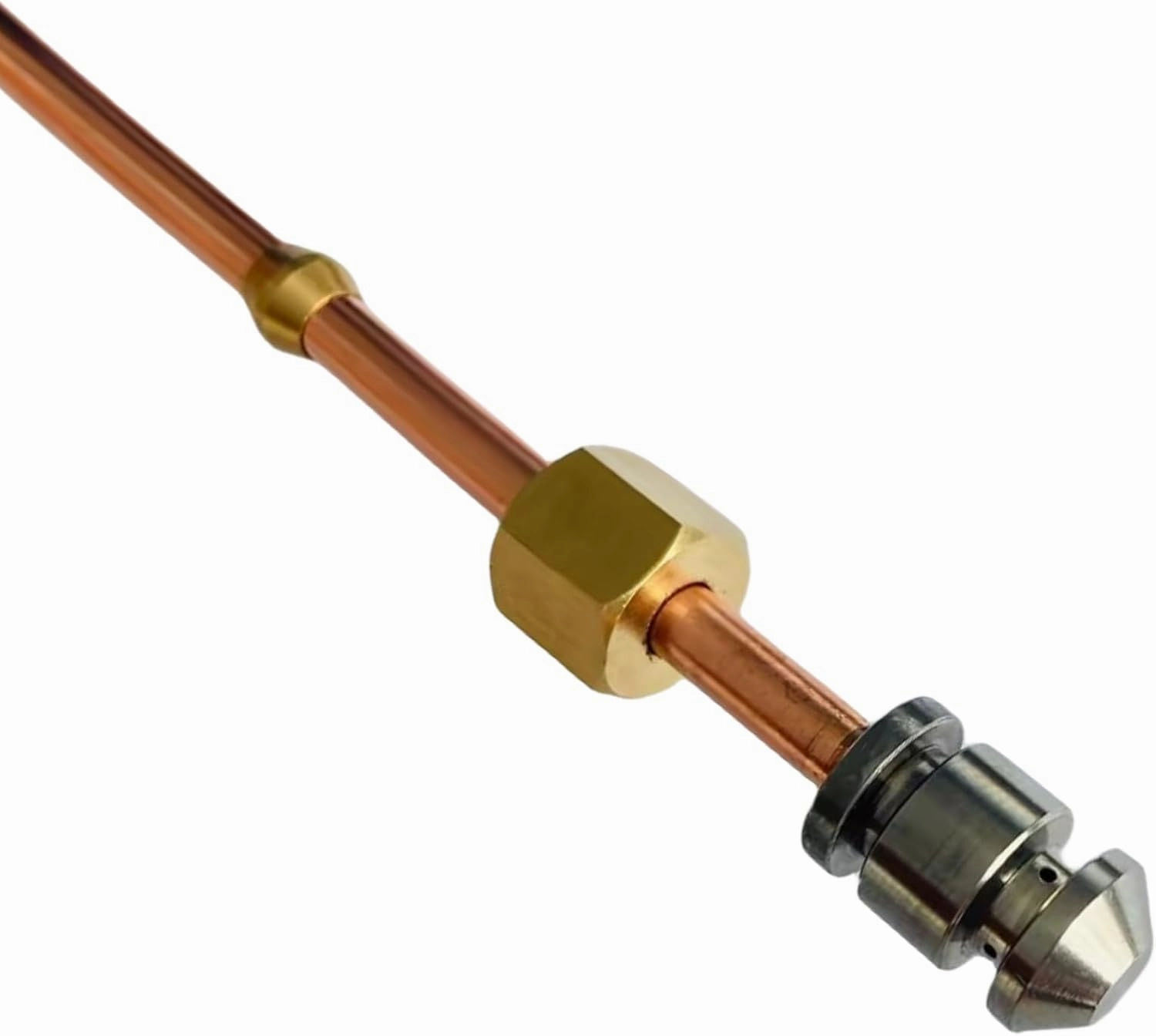

- Pilot tube 3/16" x20" copper pipe bendable line with pilot tip assembly. 3/16" OD Copper pipes can bend according to the path.Place the pilot tube in the desired location and mark it with a pencil or marker. Unnecessary length copper can be cut off
- Compatible with American Range A29236 Pilot Tube and Tip Assembly, Griddle, AR Series
